Hydraulic lifting system S‑2009
The lightweight compact hydraulic lifting system S‑2009 with built-in automatic pull mechanism is designed for mobile use for pulling probing rods and percussion window samplers.
To perform the pulling, either ball or jaw clamps are used. With the 4‑stroke HONDA gasoline engine, easy starting and long-term usage are ensured due to high-quality materials used in construction.
Thanks to the built-in speed lifting device, pulling speeds of up to 120 cm/min are possible.
Optionally, the pulling device can be equipped with an additional hydraulic filtration system. This helps prevent failures and downtime due to contamination in the hydraulic system and extends the lifespan of the equipment.
1 pc. hydraulic aggregate type S‑2009
1 pc. lifting unit S‑42 / S‑52
1 pc. support board
1 pc. top plate
Weight ca.: 25 kg
Lifting speed: up to 120 cm/min
Weight S‑42 ca.: 20 kg
Weight S‑52 ca.: 24 kg
Lifting capacity S‑42: 7 t
Lifting capacity S‑52: 11 t
Hydraulic lifting system SZ / SZ‑R
The high performance hydraulic lifting system SZ with built-in automatic pull mechanism is a powerful system with gasoline engine. The system can be operated at pulling speeds of up to 270 cm/min.
Due to its fast pulling speed, waiting times when extracting probing rods and percussion window samplers can be significantly be reduced.
For mobile use, the aggregate can be optionally equipped with a set of 4 solid rubber tires, a removeable drawbar, and a practical holder for the lifting unit and support board.
Optionally, the pulling device can be equipped with an additional hydraulic filtration system. This helps prevent failures and downtime due to contamination in the hydraulic system and extends the lifespan of the equipment.
1 pc. hydraulic aggregate type SZ / SZ‑R
1 pc. lifting unit S‑42 / S‑52 / S‑61
1 pc. support board
1 pc. top plate
Weight ca: 41 kg
Lifting speed: up to 270 cm/min
Weight S‑42 ca.: 20 kg
Weight S‑52 ca.: 24 kg
Weight S‑61 ca.: 31 kg
Lifting capacity S‑42: 9 t
Lifting capacity S‑52: 14 t
Lifting capacity S‑61: 20 t

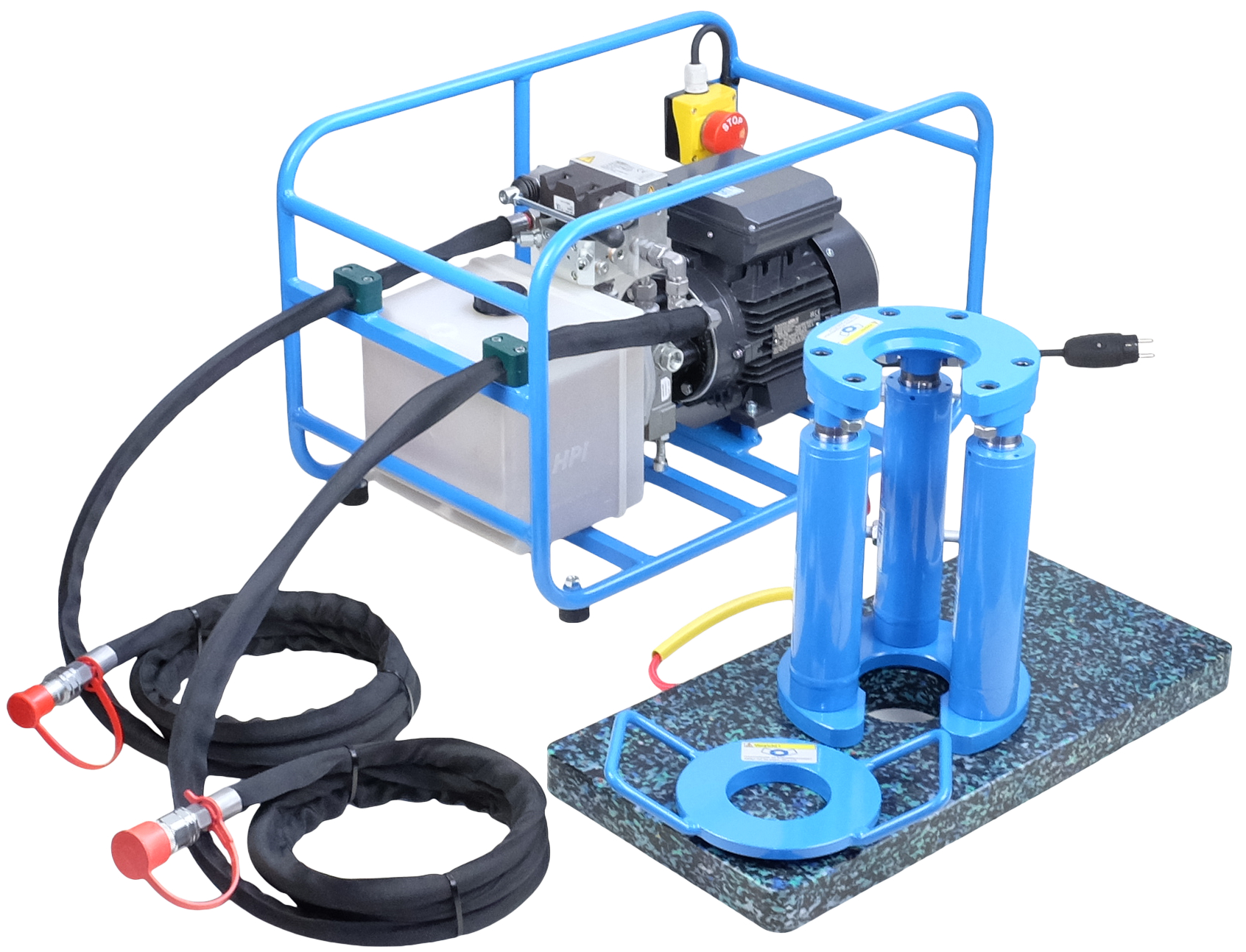

Hydraulic lifting system SZE / SZE‑R
If a gasoline-powered lifting system cannot or should not be used (e.g., in enclosed spaces). For such situations or similar ones, we offer the hydraulic lifting system SZE with a 1,1 kW electric motor. The system can be operated at pulling speeds of up to 180 cm/min.
Due to its fast pulling speed, waiting times when extracting probing rods and percussion window samplers can be significantly be reduced.
For mobile use, the aggregate can be optionally equipped with a set of 4 solid rubber tires, a removeable drawbar, and a practical holder for the lifting unit and support board.
Optionally, the pulling device can be equipped with an additional hydraulic filtration system. This helps prevent failures and downtime due to contamination in the hydraulic system and extends the lifespan of the equipment.
1 pc. hydraulic aggregate type SZE / SZE‑R
1 pc. lifting unit S‑42 / S‑52
1 pc. support board
1 pc. top plate
Weight ca.: 38 kg
Lifting speed: up to 180 cm/min
Weight S‑42 ca.: 20 kg
Weight S‑52 ca.: 24 kg
Lifting capacity S‑42: 9 t
Lifting capacity S‑52: 14 t
Product video:
Accessories
Support board
100% recyclable, made from PE, sturdy support board with handle for all pulling devices.
