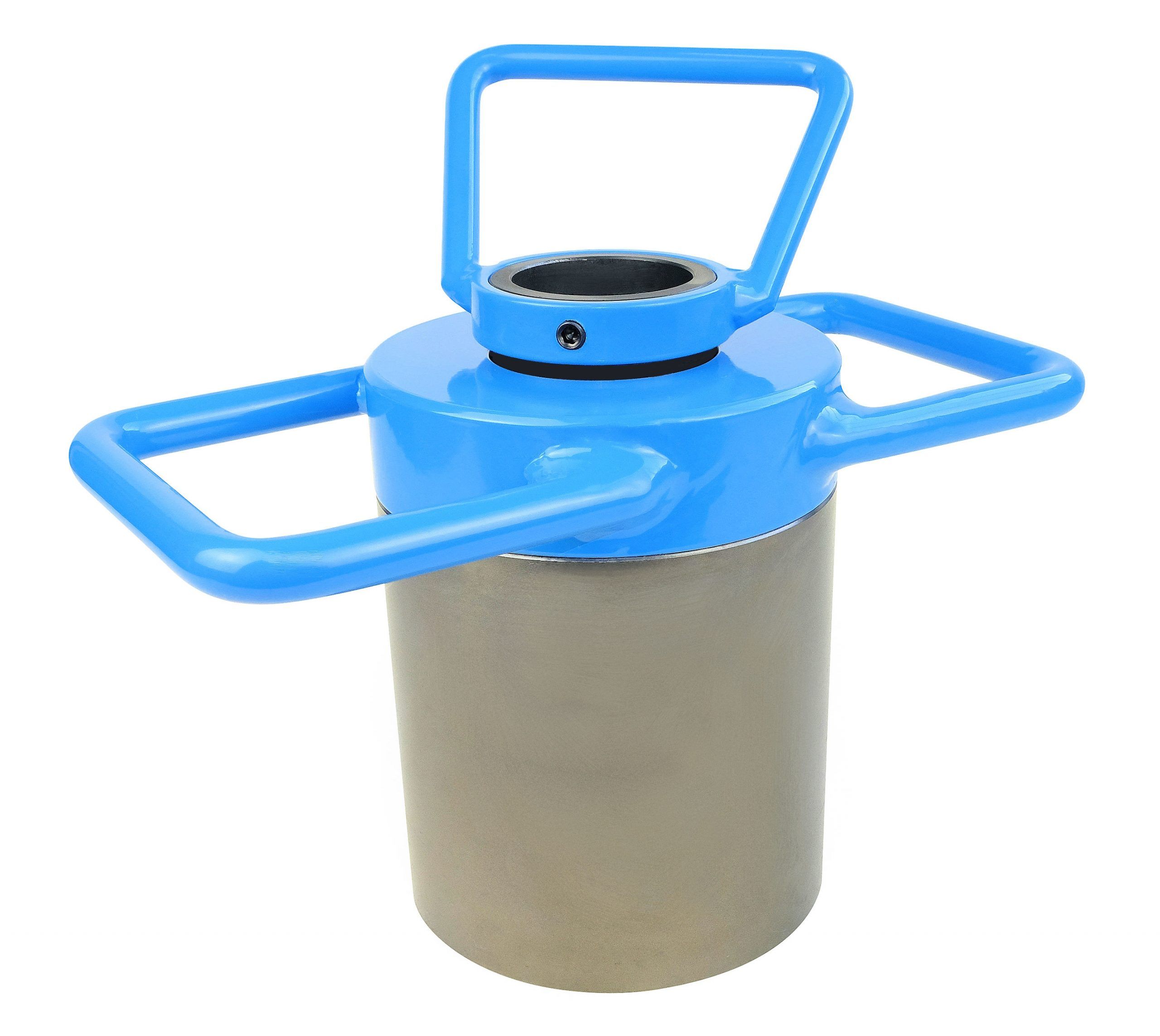

Ball clamps
The robust and duraÂble ball clamps are an effiÂciÂent tool for pulÂling work due to their high tenÂsiÂle and clamÂping forces.
They encirÂcle the probe rod in a cirÂcuÂlar manner and on a speÂciÂfic area. The ball clamps are equipÂped with an handle for easy release of the clamp.
ClamÂping range Ball rows Weight
22–36 mm 2 9,0 kg
32–36 mm 4 6,7 kg
25–43 mm 2 9,2 kg
32–44 mm 2 11,0 kg
36–53 mm 2 10,4 kg
60–67 mm 1 6,5 kg
Jaw clamps
For clamÂping proÂbing rods during pulÂling work. An jaw clamp housing is requiÂred for the various interÂchÂanÂgeable jaw clamps.
Jaw clamps encirÂcle the probe in cirÂcuÂlar manner over a larger area.
ClamÂping range Weight
22–25 mm 7,2 kg
32–36 mm 6,9 kg
36–42 mm 6,8 kg
42–46 mm 6,5 kg
50–54 mm 7,2 kg
60–64 mm 5,6 kg
68–72 mm 7,2 kg
80–84 mm 6,2 kg
Rod resÂcuer S‑9100
The rod resÂcuer is desiÂgned for resÂcuing proÂbing rods and perÂcusÂsion window samÂplers that are stuck in the boreÂhole, for examÂpÂle, due to a break.
To use it, the rod resÂcuer is screwed onto the extenÂsiÂon rod with the approÂpriaÂte threaÂded conÂnecÂtion and loweÂred into the exisÂting boreÂhole (miniÂmum Ø 60 mm) until it reaÂches the broken rod.
The broken rod is clamÂped by the interÂnal ball clamÂping mechaÂnism and can then be retrieÂved.
ClamÂping range Thread
36 mm RDS, GS, M20, M22
32 mm M20, M22
